Product Datasheet Search Results:
1 Pages, 67 KB, Original- TQ2-12V
- Aromat Corporation
- Over 600 obsolete distributor catalogs now available on the Datasheet Archive - RELAY, ULTRA SMALL HIGH SENSITIVITY, 1028.0 COIL OHMS, 140 MW
7 Pages, 151 KB, Original- TQ2-12V
- Panasonic / Nais
- TQ-relay. Low profile 2 form C relay. Standard (B.B.M.) type. Single side stable. Standard PC board terminal. Nominal voltage 12 V DC.
11 Pages, 184 KB, Original- TQ2-12V
- Panasonic Electric Works
- SIGNAL RELAY, DPDT, 12VDC, 1A, THOUGH HOLE
11 Pages, 184 KB, Original- TQ2-12V-3
- Panasonic Electric Works
- Signal Relay, TQ Series, Non Latching, DPDT, 12 VDC, 1 A
7 Pages, 193 KB, Original- TQ2-12VDC
- Panasonic Electric Works
- RELAY, PCB, DPCO, 1A, 12VDC, PCB
Product Details Search Results:
Panasonic.co.jp/TQ2-12V
{"Function":"General Purpose","Current Rating":"1 A","Dimensions":"0.551 in. L x 0.354 in. W x 0.197in. + 0.016 in. - 0.008 in. H","Mounting Type":"PCB","Material, Contact":"Gold-Clad Silver","Brand/Series":"TQ Series","Contact Form":"DPDT","Relay Type":"Electro Mechanical","Voltage, Rating":"125 VAC","Standards":"UL, CSA","Latch Type":"Single Side Stable","Diameter, Mounting":"0.039 in. Dia. (Hole)","Current, Rating":"0.5\u20441 AAC\u2044ADC","Number of Pins":"10","Termination":"Solder","Voltage, Control":...
1771 Bytes - 19:38:13, 14 January 2026
Panasonic.co.jp/TQ2-12V-3
671 Bytes - 19:38:13, 14 January 2026
Panasonic.co.jp/TQ2-12VDC
819 Bytes - 19:38:13, 14 January 2026
Panasonic-electric-works.com/TQ2-12V
{"Category":"Relays","Turn Off Voltage (Min)":"1.2 VDC","Relay Type":"Telecom","Termination Style":"PC Pin","Catalog Drawings":"TQ2 Series PCB TQ2 Series PCB Board TQ2 Series PCB Non Latching","Operating Temperature":"-40\u00b0C ~ 70\u00b0C","Coil Resistance":"1.03 kOhms","Coil Current":"11.7mA","Turn On Voltage (Max)":"9 VDC","Product Photos":"TQ2- Series","Switching Voltage":"125VAC, 110VDC - Max","Coil Power":"140 mW","Datasheets":"TQ Series","Standard Package":"50","Other Related Documents":"Relay Techn...
2026 Bytes - 19:38:13, 14 January 2026
Panasonic-electric-works.com/TQ2-12V-3
{"Category":"Relays","Turn Off Voltage (Min)":"1.2 VDC","Relay Type":"Telecom","Termination Style":"PC Pin","Operating Temperature":"-40\u00b0C ~ 70\u00b0C","Coil Resistance":"1.03 kOhms","Coil Current":"11.7mA","Turn On Voltage (Max)":"9 VDC","Product Photos":"TQ2- Series","Switching Voltage":"125VAC, 110VDC - Max","Coil Power":"140 mW","Datasheets":"TQ Series","Standard Package":"50","Other Related Documents":"Relay Technical Info Standards Chart How to Read Date Codes","Coil Voltage":"12VDC","Family":"Si...
1880 Bytes - 19:38:13, 14 January 2026
Panasonic-electric-works.com/TQ2-12VDC
{"Contact Configuration:":"DPDT","Contact Current:":"1 A","Relay Terminals:":"Solder","Contact Material:":"Silver","Coil Voltage:":"12 VDC","Product Range:":"TQ Series","Relay Mounting:":"Through Hole","Contact Voltage VDC:":"30 V","Coil Resistance:":"1.028 kohm","SVHC:":"No SVHC (15-Jun-2015)","Coil Type:":"Non Latching","Contact Voltage VAC:":"-"}...
1275 Bytes - 19:38:13, 14 January 2026
Documentation and Support
Use our online request for specific proposed solutions or send your technical question directly to a product specialist at request:
| File Name | File Size (MB) | Document | MOQ | Support |
|---|---|---|---|---|

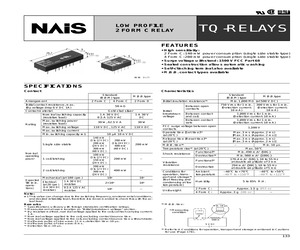

| TQ2-12V.pdf | 0.55 | 1 | Request |
