Product Datasheet Search Results:

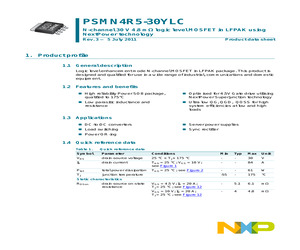

15 Pages, 1112 KB, Original- PSMN4R5-30YLC,115
- Nexperia
- Trans MOSFET N-CH 30V 84A 5-Pin(4+Tab) LFPAK T/R
16 Pages, 309 KB, Original- PSMN4R5-30YLC,115
- Nxp Semiconductors
- MOSFET N-CH 30 V 4.8 mOhms LOGIC LEVEL MOSFET
Product Details Search Results:
Nexperia/PSMN4R5-30YLC,115
{"Polarity":"N","Gate-Source Voltage (Max)":"20(V)","Channel Mode":"Enhancement","Power Dissipation":"61(W)","Continuous Drain Current":"84(A)","Mounting":"Surface Mount","Operating Temp Range":"-55C to 175C","Drain-Source On-Volt":"30(V)","Packaging":"Tape and Reel","Operating Temperature Classification":"Military","Rad Hardened":"No","Package Type":"LFPAK","Type":"Power MOSFET","Pin Count":"4 +Tab","Number of Elements":"1"}...
1415 Bytes - 11:41:03, 09 January 2026
Nxp.com/PSMN4R5-30YLC,115
{"Category":"Discrete Semiconductor Products","FET Feature":"Logic Level Gate, 4.5V Drive","Vgs(th) (Max) @ Id":"1.95V @ 1mA","Package / Case":"SC-100, SOT-669, 4-LFPAK","Current - Continuous Drain (Id) @ 25\u00b0C":"84A (Tc)","Gate Charge (Qg) @ Vgs":"20.5nC @ 10V","Product Photos":"LFPAK-4, SOT669","PCN Assembly/Origin":"Wafer Fab Addition 12/Jan/2015","Rds On (Max) @ Id, Vgs":"4.8 mOhm @ 20A, 10V","Datasheets":"PSMN4R5-30YLC","FET Type":"MOSFET N-Channel, Metal Oxide","PCN Packaging":"Leader/Trailer Upda...
2029 Bytes - 11:41:03, 09 January 2026
