Product Datasheet Search Results:

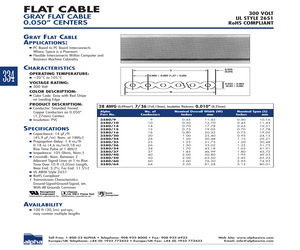

1 Pages, 102 KB, Original- 3580/10 30.5M (100FT) REEL
- Alpha
- Flat Cable 10Conductors 28AWG 300VAC Gray/Red Stripe 30.48m
1 Pages, 102 KB, Original- 3580/10 SL005
- Alpha
- Flat Cable Polyvinyl Chloride 10Conductors 28AWG 300VAC Gray/Red Stripe 30.48m
3 Pages, 346 KB, Original- 3580/10-SL005
- Alpha
- 3580/10-SL005
3 Pages, 346 KB, Original- 3580/10-SL005
- Alpha
- 3580/10-SL005
1 Pages, 102 KB, Original- 3580/10
- Alpha Wire
- FLAT CABLE 10CONDUCTORS 28AWG STRANDED TINNED COPPER GRAY 300V
4 Pages, 414 KB, Original- 3580/10 SL005
- Alpha Wire
- Flat Cables 28AWG 10C UNSHLD 100ft SPOOL SLATE
1 Pages, 56 KB, Original- 3580/10SL005
- Alpha Wire
- FLAT RIBBON CABLE 10CONDUCTORS 28AWG STRANDED TINNED COPPER GRAY 300V
Product Details Search Results:
Alpha/3580/10 30.5M (100FT) REEL
{"Cable Pitch (mm)":"1.27","Color":"Gray/Red Stripe","Product Height (mm)":"0.84 mm","Number of Conductors":"10","Cable Diameter":"Not Required mm","Conductor Material":"Tinned Copper","Operating Temp Range":"-20C to 105C","Product Depth (mm)":"12.7 mm","Voltage Rating Max":"300VAC","Wire Size":"28 AWG","Type":"Flat Cable","Cable Length":"30.5 m"}...
1406 Bytes - 02:20:30, 11 January 2026
Alpha/3580/10 SL005
1024 Bytes - 02:20:30, 11 January 2026
Alpha/3580/10-SL005
826 Bytes - 02:20:30, 11 January 2026
Alphawire.com/3580/10
{"Wire, AWG":"28","Material, Conductor":"Tinned Copper","Cable Type":"Flat","Number of Conductors":"10 Cond","Temperature, Rating":"-20 to +105 \u00b0C","Standards":"UL AWM Style 2651","Application":"For PC board to PC board where space is a premium, flexible interconnects within computer and business machine cabinetry","Stranding":"7\u00d736","Material, Insulation":"Polyvinylchloride"}...
1283 Bytes - 02:20:30, 11 January 2026
Alphawire.com/3580/10 SL005
{"Category":"Cables, Wires","Ribbon Width":"0.500\" (12.70mm)","First Conductor Mark":"Red","Current Rating":"-","Ratings":"UL Style 2651","Jacket (Insulation) Material":"Poly-Vinyl Chloride (PVC)","Operating Temperature":"-20\u00b0C ~ 105\u00b0C","Insulation Resistance":"-","Product Training Modules":"Basics of Wire and Cable","Shielding":"Unshielded","Number of Conductors":"10","Conductor Strand":"7 Strands / 36 AWG","Ribbon Thickness":"0.033\" (0.84mm)","Datasheets":"Part Number Ordering Guide Comm, Cont...
1974 Bytes - 02:20:30, 11 January 2026
