Product Details Search Results:

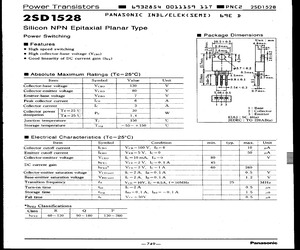

Panasonic.co.jp/2SD1528P
{"t(s) Max. (s) Storage time.":"1.5u","V(CE)sat Max.(V)":"0.5","Absolute Max. Power Diss. (W)":"1.4","t(on) Max. (s) Turn-On Time":"0.5u","V(BR)CBO (V)":"130","h(FE) Min. Static Current Gain":"130","I(C) Abs.(A) Collector Current":"3","h(FE) Max. Current gain.":"260","@V(CBO) (V) (Test Condition)":"100","I(CBO) Max. (A)":"10u","Package":"TO-220AB","f(T) Min. (Hz) Transition Freq":"25M","@V(CE) (V) (Test Condition)":"10","@I(B) (A) (Test Condition)":"100m","V(BR)CEO (V)":"80","Military":"N","@I(C) (A) (Test ...
1028 Bytes - 16:30:47, 03 January 2026
Documentation and Support
Use our online request for specific proposed solutions or send your technical question directly to a product specialist at request:
| File Name | File Size (MB) | Document | MOQ | Support |
|---|---|---|---|---|
| 2SD1525.pdf | 0.17 | 1 | Request |
